Large Loop TDEM Surveys for base metals, uranium and graphite.

ClearView Geophysics Inc. carries out large loop TDEM surveys for base metal, uranium and graphite exploration using Geonics PROTEM receivers and TEM57 transmitters with TEM67 power modules.

Low frequency 3D coils or fluxgate sensors are connected to the receiver to measure the responses.  Borehole surveys can also be carried out with BHEM probes.

Two TEM67 power modules are connected to the TEM57 transmitter to drastically increase the current through the 10 gauge copper wire loop.  The crystal clocks on the transmitter and receiver are precisely synchronized to allow accurate off-time measurements.

ClearView uses Lamontagne MultiLoopIII software to model the results for each of the 3 components.

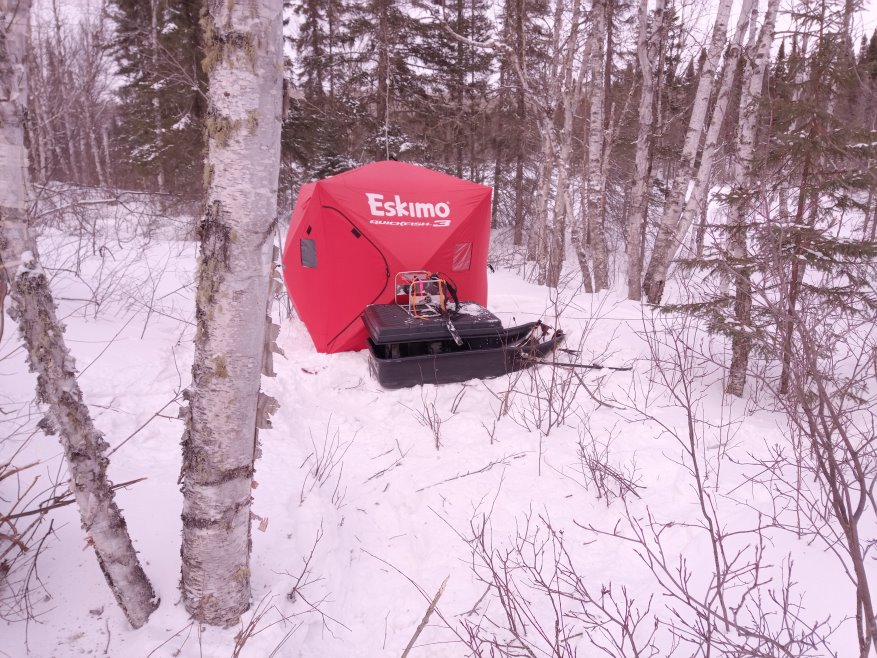

Transmitter tent – bundled-up for night
